| Elcometer 312 Thickness Gauge |
 Product Infomation
|
| Same looking as Elcometer 345 gauge. |
It has the Model：A312FI(Intergral type)) A312FS(Sperate type) A312FNFI(Intergral type) and A312FNFS(seperate type)
The difference is:
1. Its range is up to 1000μ, while Elcometer345 is up to 1500μ.
2. For the seperate model, its proble is fixed on the gauge body, while the the probe of Elcometer 345 can be taken off. |
|
|
|
|
|
|
|
 |
|
| Elcometer 345 Thickness Gauge |
| Product Infomation
|
The Elcometer 345 4 key Coating Thickness Gauge is an incredibly versatile gauge.
With a range of probes in both Integral or Separate probe versions for coating thickness measurements on Ferrous (F), Non Ferrous (NF) or both Ferrous and Non Ferrous (FNF) Substrates, the Elcometer 345 will have a gauge for your requirements.
The gauge is easy to use and has been designed with the operator in mind. User definable simple statistics allows the user to view average, standard deviation, number of readings, maximum & minimum thickness readings. These statistics can be printed out.
Keylock" feature to avoid accidental recalibration
Switchable between microns or mm & mils
Big Foot" for stability on integral models
Ideal for flat, curved and blasted surfaces
Fast reading rate
Two point calibration |
|
|
|
|
| |
|
|
 |
|
| Elcometer456 Thickness Gauge |
|
With it's newly enhanced and simplified menu screen options, the Elcometer 456 remains the most advanced hand held coating thickness gauge on the market today.
This flagship product is available in any combination of Basic, Standard, and Top functionality; and is available as either an integral (built in probe) or a separate probe version which has itself got an extensive range of plug in probes.
With such an extensive range of gauge options, there is an Elcometer 456 to meet your specific application needs. |
|
|
|
|
|
|
|
|
 |
|
| Elcometer 355 Standard Coating Thickness Gauges |
| Product Infomation
|
The unit's large memory stores up to 5,000 readings in batches and data can be output to PC, datalogger or printer as required.
A full selection of Probe Modules allows choice for your application. All modules are supplied with calibration foils.
±1% Accuracy
Rugged Aluminium Case
Traceable Thickness Standards
EDTS+ Excel Link and EDCS WIN Software Supplied
5,000 reading memory in 25 pre-set batches.
Full statistical analysis - mean, standard deviation, number of readings, highest and lowest value.
RS232 Printer/PC Output - Serial and Parallel
Date and time information |
|
|
|
|
|
|
|
 |
|
| Elcometer 550 Non Contact Uncured Powder Thickness Gauge |
| Product Infomation
|
The Elcometer 550 offers the User an unrivalled approach to measuring uncured powder thicknesses - without touching the powder.
The Elcometer 550 is designed provide the user with the correct value of the cured film thickness by the measurement of the uncured powder thickness - enabling the application system (powder guns, line speed, etc) to be set up and fine tuned.
Improves quality and saves you money
Fast, easy to use
Metric and Imperial versions
Works on any rigid surface
The Elcometer 550 is a coating thickness gauge that uses unique ultrasonic technology to measure uncured powder coatings without contacting the surface and predicts the final thickness of the coating after cure. |
|
| |
The gauge has been designed for measuring the thickness of uncured powder coatings on smooth flat or curved metallic surfaces such as steel, aluminium, etc. The shrinkage that occurs when the powder cures in the oven is allowed for in the calibration of the gauge and the thickness displayed is the final coating thickness after cure.
The probe is positioned about 17 mm (?") away from the surface to be measured and the Measure Button is pressed. The gauge's LEDs, on both the front panel and the probe, indicate the position and alignment of the probe relative to the surface.
One set of LED's indicate distance.
If the middle LED is lit the distance is correct.
If the LED's to the right are lit the probe is too far away.
If the LED's to the left are lit the probe is too close.
The other set of LED's indicate the alignment of the reflected ultrasound. For optimum measurement the probe must be aligned at 90o to the surface.
If all the LED's are illuminated the alignment is correct.
When the position of the probe relative to the surface to be measured is optimised, the gauge will automatically take readings.
As the readings are taken the count is displayed on the gauge.
Press the measurement button again to stop the measurement.
After about one second the gauge will display the predicted cured powder coating thicknesess. |
|
|
|
|
|
|
 |
|
| Destructive thickness gauge(Paint Evaluation Tool |
| Product Infomation
|
A precision instrument which will give an exact measurement of the paint thickness on virtualy all substrates.Examples:coatings on concrete,Plastidc and Wood etc and individual coats of different colours can be measured in multiple coated applications.Also can be used in difficult to access locations,on curves and small objects.
Three cutters incorporated catering for paint thickness from 2um to 2000um.
Angle 45℃ measures 20um to 2000um coating thickness with resolution of 20um per graticule division.
Angle 26.6℃ measures 10um to 1000um coating thickness with resolution of 20um per graticule division.
Angle 5.7℃ measures 2um to 200um coating thickness with resolution of 20um per graticule division.
Easy to use,simply draw the cutting edge of the selected cutter across the coating ensuring the cutter penetrates through to the substrate.Using the Graticule Microscope with Illuminated light guide supplied,examine one side of the wedge cut to measure the exact coating thickness. |
|
|
|
|
|
|
|
 |
|

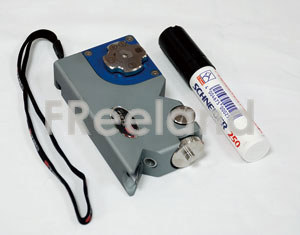

| PIG #455 |
| Product Infomation
|
This easy to use Paint Inspection Gauge provides the user with a cutter, microscope and light all in one housing and is perhaps the most recognised form of P.I.G.
>> Battery powered illumination with the built-in microscope
>> Fully portable and robust
>> Three cutters supplied (NOs.1,4 and 6) |
| SPECIFICATIONS AND PART NUMBERS |
| Thickness cutters: |
NO.1 Coating thickness between 20-2000μm(0.8-70mils/thou)
NO.4 Coating thickness between 10-1000μm(0.4-40mils/thou)
NO.6 Coating thickness between 2-200μm(0.08-8mils/thou) |
| Microscope: |
50 magnification |
| Dimensions of case: |
110× 86× 26 mm(4.3× 3.4× 1.0") |
|
|
|
|
|
| |
|
|
 |
|
| SUPER- PIG, DESTRUCTIVE COATING THICKNESS GAUGE |
| Product Infomation |
Destructive precision tool for inspection and thickness measurement or single or multiple coats on virtually all substrates, including wood, plastics, metals etc. Also observes and measures substrate and film defects. Applies a small incision in the layer or paint, and uses an integrated microscope with measuring reticle. Includes three cutter blades. |
|
|
|
|
|
|
