Cross Hatch Cutter
Product Infomation

The Paint Test Equipment Cross Hatch Cutter will allow an assessment to be made of the adhesion resistance of coatings to separation from substrates when a right angled lattice pattern is cut into the coating and penetrates through to the substrate.

CROSS-CUT TEST ADHESIVE TEST
Product Infomation
Measuring set for determining the adhesion or coatings up to 250 μm thick. This cross- cut test complies with ISO/DIN2409, and ASTM D3359. The set consists or a holder with optional cutter blade, a brush, an illuminated loupe and roll or adhesive tape.

SP1690
Complete set ISO, 1 mm

Spare knife 1 mm. (ISO) Article no. SP1702
Standard adhesive tape, set or 3 rolls: Article no. SP3010

MULTI-TESTER MASTER PAINT PLATE
Product Infomation
Multi-functional stainless steel measuring tool. Can be used for : a 1-2-3mm pane adhesion test and ASTM-cross, measuring wet film thickness or up to 150 microns, checking for correct cover or edges, optically determining thickness or glass, as well as providing an indication or the viscosity or the coating. Delivery includes cutting tool and tape.

SP3000
Dimensions: 100 x 55 mm.

Elcometer 106 Pull off Adhesion Tester

Product Infomation
The Elcometer 106 adhesion tester - easy to operate and fully portable, provides a numerical value for adhesion. Applications include: paint or plasma spray on bridge decking, coatings on steel, aluminium or concrete, etc.

Comes in a carrying case - ideal for site tests
Hand operated so you don't have to worry about a power supply!

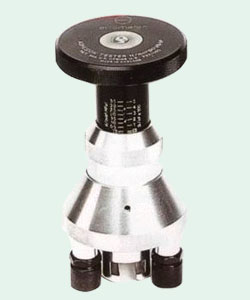

Hydraulic Adhesion Testers
Product Infomation

Range:operating 0-18MPa(0-2600Psi)Pressure gauge accauracy: ±5% of reading or 1.5MPa(50Psi)

Dolly size:

outside:19.4mm(0.76'')

inside:3.7mm(0.15'')

Area:284mm2(0.44sq.inch)
Viscositor Machine
Product Infomation
》For paint industry
》Rotate at 200rpm
》Range:40-141KU or 32-1099gm
