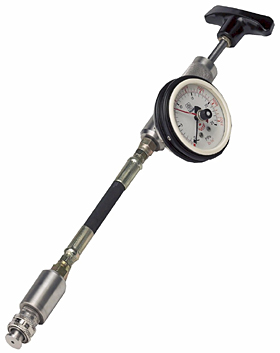

It is an extremely versatile hydraulic adhesion tester which will cope with many adhesion test requirements. Tests can be made on flat or curved (concave and convex) surfaces.

A reusable, stainless steel dolly is adhered to the coating's surface and the force required to push the dolly from the surface is applied using the handle. The value of the force applied is displayed either on a digital display or with an analogue dial. For areas susceptible to explosion (e.g. inflammable areas) the analogue version should be chosen.

It is the ideal gauge for coatings on Tanks, Pipelines, etc
Hand-powered and portable
Ideal for site work
Reusable stainless steel dollies
Complete kit and carrying case
Elcometer Digital Adhesion Gauge Features include:

Maximum Hold - displays the highest value reached.
±1% Reading Accuracy

Backlight Display for dark areas
Rubber protective casing

Switchable Metric / Imperial Units
It can be used with curved dollies, making this the gauge for adhesion on pipelines, tanks, and other curved surfaces.

A wide range of curved dollies are available, each designed for a specific range of curvature. Convex (top illustration) and concave (bottom illustration) dollies are for use on external and internal curvatures respectively.
