The Holitech is a DC Holiday Tester, (Holiday Detector, Pinhole Tester, Spark Tester, Jeep Tester) which will test and detect pinholes and flaws in insulated coatings on conductive substrates.

Where coatings have to provide an effective safeguard against corrosion, it is essential that any pinhole or flaws which will eventually lead to corrosion are detected using a Holiday Tester at the earliest possible stage, preferably immediately after the coating application.

Range: 0 to 15kV / 0 to 30kV

The premature corrosion of a substrate is often due to the failure of it's coating. Major causes of failure are flaws in the finished coating, these include pinholes, holidays, inclusions, thin spots and bubbles.

The Elcometer 236's convenient carrying case allows the probe handle and accessories to be attached to the front making the Elcometer 236 ideal for field, site or laboratory inspection.

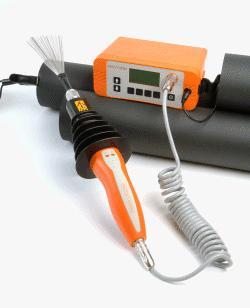

The Elcometer 266 has been specifically designed to revolutionise high voltage DC testing of coatings by making it safer, easier and more reliable than previously possible.

Voltage calculator automatically sets the correct voltage from your coating thickness value

Voltage adjustable using the keypad - no need for screwdriver:

0.5kV - 1kV in 50V steps,1kV to 30kV in 100V steps

Internal Jeep tester ensures that the selected voltage equals the test voltage

5kV, 15kV and 30kV DC versions available

Audible and visual alarms are activated when a flaw is detected

Specialised ribbing provides superior protection while an optional second hand grip is ideal for two handed use

Dual safety switch on handle to avoid accidental switch on

Battery packs can be recharged inside or outside the gauge for continued use

Adapter enables use of accessories from other manufacturers

Supplied ready to use
Automatic voltage calibration and voltage checks
Low battery indicator
Visual and audio alarms
Integral and separate wand functionality
A wide range of fully interchangeable wand accessories are available
4 model variants in single, dual or triple voltages
Easy release snag proof cables
Large standard sponge
Available in an inspection kit for all your inspection requirements
