| T-4 Flow Cup |
 Product Infomation
|
National Standard GB/T1723-93 "Determination of Viscosity of Coating Materials" and the practical requirement of mechanical construction. It is applicable to the determination of viscosity of a certain coating materials of which the flow time determined by it is under 150s.
Main Technical Parameters
1. Volume of cup: 100ml
2. Inside diameter of orifice: Φ4mm
3. Correct coefficient: （0.97~1.03） (25℃±2℃) |
|
|
|
|
|
|
|
 |

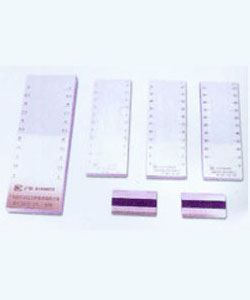

| Fineness Gauges |
| Product Infomation
|
Based on the specification of the special identification regulations of measurement instruments for "Fineness Gauges" issued by former Ministry of Chemical Industry. They are applicable to determine the fineness of grind for the pigments and other particles dispersed in paints and pigmented pastes.
Main Technical Parameters
1. Types：QXD～0 QXD～1 QXD～2 QXD～3 QXD～25 (double channels)
2. Range of measurements：0～25μm 0～50μm 0～100μm 0～150μm 0～25μm
3. Graduations：2.5μm 5μm 10μm 10μm 2.5μm
4. Overall dimensions：
Single channel:170×50×12mm（length by width by height）
Double channels：175×65×13mm（length by width by height） |
|
|
|
|
|
|
|
 |
| Impact Tester |
| Product Infomation
|
Impact Tester produced by our company is in accordance with the specification in National Standard GB/T 1732-93 “Determination of paint film resistance to impact” and the practical requirement of mechanical construction. The operation principle of the impact tester is by means of a weight that drops down from a specified height and impacts a painted panel under test to result in its rapid deformation, and the film resistance to impact is then attained from observing the film whether cracked or peeled off.
Main Technical Parameters：
1. Height of impact: 0-50cm
2. Hammer weight: 1000±1g
3. Diameter of steel ball on the punch end: Φ8mm
4. Overall dimension: 250×150×820mm (length by width by height)
5. Net weight: 11Kg |
|
|
|
|
|
|
|
|
| QBB Density Cup |
| Product Infomation
|
QBB Density Cup produced by our institute is in accordance with the specification of National Standard GB/T6750-86 "Paints and Varnishes-Determination of Density" and the practical requirement of mechanical construction. It is applicable to determine the density for various coatings, supplementary materials, oils and related materials.
Main Technical Parameters
1. Cup volume: 37ml/4℃ 100ml/4℃
2. Counter weight: It has a hole in the center that may be filled with lead particles to adjust the mass. |
|
|
|
|
|
|
|
|
| Elcometer 4340 Motorised / Automatic Film Applicator |
| Product Infomation
|
| The Elcometer 4340 Motorised Film Applicator is the essential machine for preparing a wide variety of product samples including paint, varnish, cosmetics and glue. |
11 pre-set transverse speeds from 0.2 - 3.9 inches per second Ideal for testing liquids including: paint, varnish, cosmetics, glue Adjustable travel carriage with ‘auto stop'at end of travel Precision engineered flat aluminium table for better repeatability - 5 times flatter than glass
Heavy base unit to minimise vibration and to produce high quality samples, without "Vibration ridges".Standard table & perforated or channelled vacuum tables available
Electric or water heated sample tables available for temperature control.Can be used with a full range of Elcometer Film Applicators |
The Elcometer 4340 Automatic Film Applicators are versatile, rugged and precise. The rigid construction ensures a smooth, consistent application without the ridges often associated with film application. The Elcometer 4340 provides total consistency and reproducibility on various substrates including contrast charts, sheet steel, plastic foils and glass. |
|
|
|
|
|
|
|
