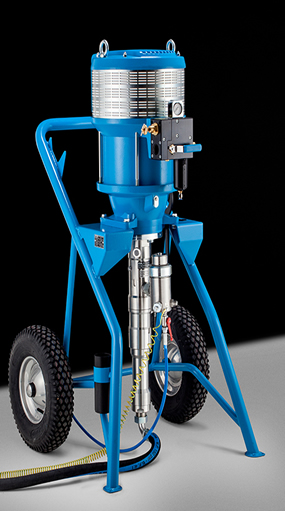

WIWA AIRLESS 270
The AIRLESS 270 introduced in 2015 has been rebranded to WIWA HERKULES 270 GX . With our new oil‐free, low noise, anti-icing air motor, the WIWA HERKULES GX SERIES is a dynamic and powerful addition to our single feed, airless product range. Both units handle long hoses and multiple spray guns with ease.
Suited for continuous operation under the toughest conditions with large areas and thick film coatings where extremely high pressure ratios, high volume output and continuous production are required. Ideal for automated spraying and paint circulation systems.
Made of high quality materials and crafted to require the lowest possible maintenance, these exceptionally durable and reliable units provide a highly economical investment.
New features:
- The air motor is oil‐free, anti‐icing and low noise
- No pulsation ensures precise results
- The material pump and high‐pressure filter are made of stainless steel and are easily serviced using the hook spanner
- Compact air maintenance unit mounted directly on the air motor
- All material wetted parts are made of stainless steel
- A stable multi‐functional frame equipped with large wheels, ring bolts for easy lifting, holders for the suction hose and a hook spanner
- Self‐adjusting packings reduce wear and tear and keep maintenance costs low Technical data
Tchnical data |
Model 270088 |
Model 270071 |
Model 270049 |
Model 270037 |
Model 270024 |
Pressure ratio |
88:1 |
71:1 |
49:1 |
37:1 |
24:1 |
Max. free flow output at 60 cycles (L/min) |
9,2 |
11,3 |
16,5 |
21,6 |
33,0 |
Output per cycle (ccm) |
153 |
189 |
275 |
360 |
550 |
Max. air inlet pressure (bar) |
5,5 |
7 |
8 |
8 |
8 |
Max. operating pressure (bar) |
484 |
497 |
392 |
296 |
192 |
Air motor piston diameter (mm) |
270 |
270 |
270 |
270 |
270 |
|
