----- Spray Equipment ----- |
|
|
|
|

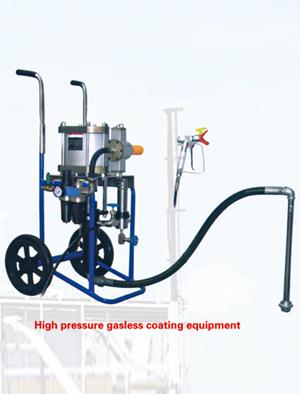

| Airless paint spraying machine |
 Power:Air driven |
| Model:FLS-D-140 |
Output ： 25L/min
Pressure ratio ： 65 : 1
Weight ： 45kg
Size ： 500 x 540 x 780mm |
Application:
Shipbuidling, steel structure, automobile, railway, container, storage tank, and bridge. |
|
|
| |
|
|
|
|
|

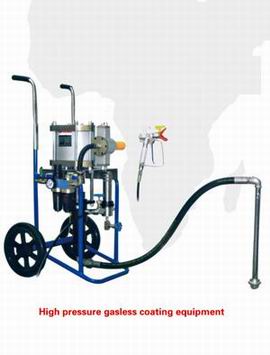

| Airless paint spraying machine |
| Power:Air driven |
| Model: FLS-D-142 |
Output ： 51L/min
Pressure ratio ： 32 : 1
Weight ： 55kg
Size ： 500 x 540 x 920mm |
Application:
Shipbuidling, steel structure, automobile, railway, container, storage tank, and bridge.especially good for zinc rich paint |
|
| |
|
|
|
|
|
| Airless paint spraying machine |
| Power:Air driven |
| Model: FLS-D-144 |
Output ： 28L/min
Pressure ratio ： 65 : 1
Weight ： 60kg
Size ： 570 x 540 x 960mm |
Application:
Shipbuidling, steel structure, automobile, railway, container, storage tank, and bridge. |
|
| |
|
|
|
| |
|
|

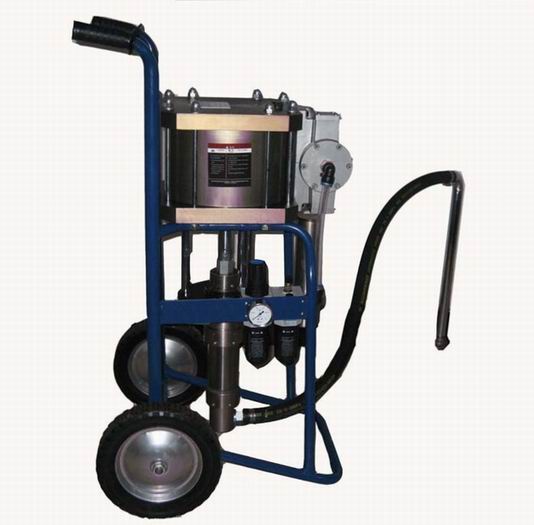

| Product Infomation
|
|
Model |
FLS-K-154 |
|
Data |
Pressure ratio: 56 : 1 Weight (kgs) : Size(cm) : |
|
|
Output (GPM) L/min: 13 (3.43GPM) |
| |
Max Pressure : 5600psi / 380bar |
| |
Air Pressure Range : 40~90psi / 3-6.2bar/0.3~0.62Mpa |
| |
Max Pump Speed (CYCLE/min) : 60 |
| |
Stroke(mm) : (CYCLE/min): 60 |
| Applicable paints |
High viscosity paints |
| Application |
Shipbuild, steel structure, construction paint. |
|
|
|
|
| |
|
| Product Infomation
|
|
Model |
FLS-K-157 |
|
|
Pressure ratio : 68 : 1 Weight (kgs) : 85 Size(cm) : 73x75x127 |
|
|
Output(GPM) L/min : 11 (2 3/4GPM) |
| |
Max Pressure : 6,120psi / 422bar/42.2Mpa |
| |
Air Pressure Range :40~90psi / 3-6.2bar/0.3~0.62Mpa |
| |
Max Pump Speed (CYCLE/min) : 50 |
| |
Stroke (mm): 127 (5inch) |
| Applicable paints |
High viscosity paints |
| Application |
Shipbuild, steel structure, construction paint. |
|
|
|
|
| |
|
| Product Infomation
|
|
Model |
FLS-K-156 |
|
Data |
Pressure Ratio : 63 : 1 Weight (kgs): 83 Size(cm): 73x75x125 |
|
|
Output(GPM) L/min : 11 (2 3/4GPM) |
| |
Max Pressure : 5670psi / 390bar/39Mpa |
| |
Air Pressure Range : 40~90psi / 3-6.2bar/0.3~0.62Mpa |
| |
Max Pump Speed (CYCLE/min) : 50 |
| |
Stroke (mm) : 120 (4 3/4inch) |
| Applicable paints |
High viscosity paints |
| Application |
Shipbuild, steel structure, construction paint. |
|
|
| |
|
|
| Product Infomation |
| Model |
FLS-K-152 |
| Data |
4050psi / 280bar/28Mpa |
| |
Air Pressure Range :40~90psi / 3-6.2bar/0.3~0.62Mpa |
| |
Max Pump Speed (CYCLE/min) : 50 |
| |
Stroke(mm): 120 (4 3/4inch) |
| Applicable paints |
High viscosity paints |
| Application |
Shipbuild, steel structure, construction paint. |
|
|
|
|
|
|
|
|

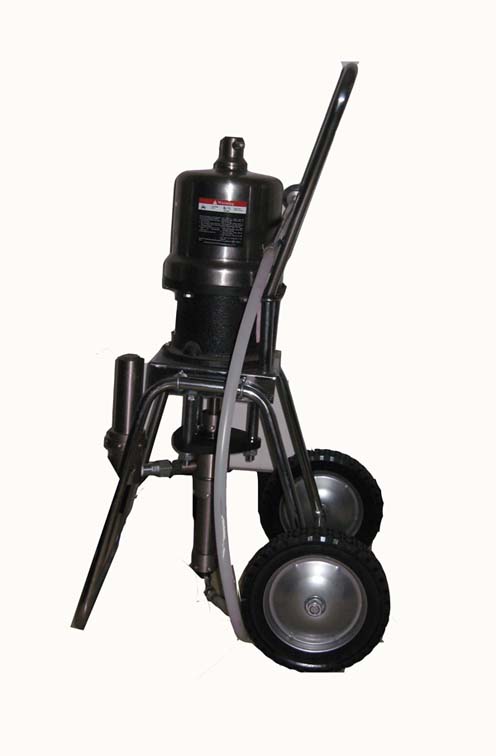

| Airless paint spraying machine |
| Power:Air driven |
Model |
FLS-D-138 |
FLS-D-139 |
Output :L/M |
20.8 |
13.8 |
Pressure ratio |
30:1 |
45:1 |
Compress air(MPa) |
0.4-0.6 |
0.4-0.6 |
Stroke(mm) |
100 |
100 |
Weight |
65 |
65 |
Diameter of cylinder(mm) |
Φ200 |
Φ200 |
|
|
|
|
|
|
|
| Airless paint spraying machine |
| Power:Air driven |
Model |
FLS-D-136 |
FLS-D-137 |
Output ::L/M |
20.8 |
20.8 |
Pressure ratio |
46:1 |
69:1 |
Compress air(MPa) |
0.4-0.6 |
0.4-0.6 |
Stroke(mm) |
100 |
100 |
Weight |
80 |
80 |
Diameter of cylinder(mm) |
Φ250 |
Φ250 |
|
|
|
|
|
|
|
| Airless paint spraying machine |
| Power:Air driven |
Model |
FLS-D-135 |
Output ::L/M |
5.6 |
Pressure ratio |
34 ： 1 |
Compress air(MPa) |
0.3-0.6 |
Stroke(mm) |
100 |
Weight |
37 |
Diameter of cylinder(mm) |
Φ125 |
|
|
|
|
|
|
|
| Airless paint spraying machine |
| PRODUCT INFORMATION |
Model |
FLS-D-134 |
Output ::L/M |
4 |
Pressure ratio |
36 ： 1 |
Compress air(MPa) |
0.3-0.5 |
Stroke(mm) |
70 |
Weight |
55 |
Diameter of cylinder(mm) |
Φ180 |
|
|
|
|
|
|
|
