DUOMIX PU HX
More than 200 different mixing ratios possible
Equipped with an energy saving mode as standard
Processes almost all polyurethane foams and fast reacting polyurea

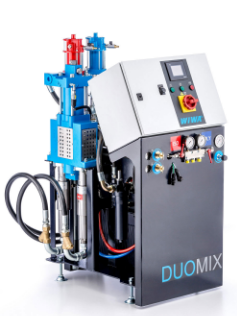

This hydraulic, compact, mobile and versatile unit processes almost all polyurethane foams and fast reacting polyurea.The WIWA DUOMIX PU HX unit is equipped with an energy-saving mode as standard. This detects the system status during coating and automatically switches off consumers that are not currently required.The new design of the dosing pumps allows a further improved material flow. Wear on dynamic parts has been significantly reduced as a result. Changing the mixing ratio is a matter of minutes thanks to simplified replacement of the material pumps. More than 200 different mixing ratios can be realized in this way.
| Output per cycle |
194 ccm |
| Max. output |
6.6 l/min |
| Max. operating pressure |
250 bar |
| Mixing ratio |
1:1 |
| Material fluid heater |
12 kW |
| Max. heating capacity hose package |
47 kW |
| Voltage phases |
230-400 |
| Max. power requirement |
23 kW |
| Power rating hydraulic powerpack |
4 |
