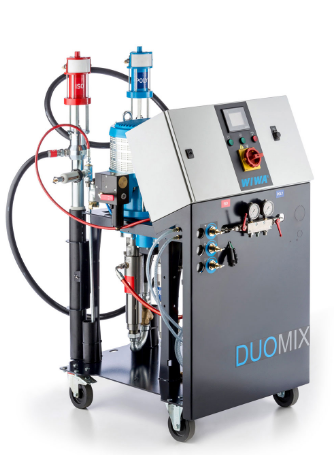

DUOMIX PU 540
Optimal for high application rates
More than 200 different mixing ratios possible
Processes almost all polyurethane foams and fast reacting polyurea
The exceptionally economical heater is based on proven and patented technology of gentle material heating. Only the amount of individual components just required is brought to processing temperature both efficiently and very gently in an extremely short time.The design of the dosing pumps allows a further improved material flow. This significantly reduces wear on dynamic parts. Changing the mixing ratio is a matter of minutes thanks to simplified replacement of the material pumps. More than 200 different mixing ratios can be realized in this way.
| Output per cycle |
264 ccm |
| Max. inbound air pressure |
8 bar |
| Max. operating pressure |
248 bar |
| Mixing ratio |
1:1 |
| Material fluid heater |
12 kW |
| Max. heating capacity hose package |
47 kW |
| Max. hose length |
138 m |
| Voltage phases |
400V/3 P |
| Max. power requirement |
16.5 kW |
| Weight approx. |
210 kg |
