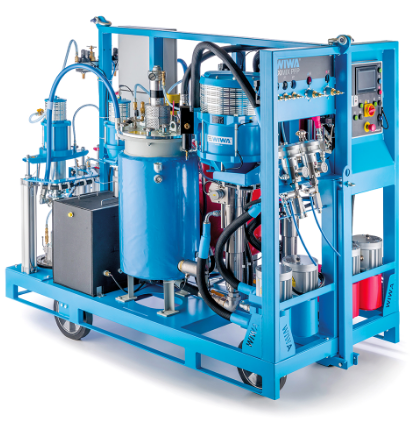

FLEXIMIX GX PFP

Variable mixing ratio

Clear display of all system parameters on large screen

Pressure vessels directly heated with strong heating power

To ensure the correct mixing ratio, operation of the FLEXIMIX GX PFP is weight- or volume-based. Ratio checks are quick and easy to perform and save time and material, as cost-intensive rework is no longer required. The level of the material to be processed is determined by radar sensor and can therefore always be read in real time on the display. The FLEXIMIX GX PFP already operates ex works with five heating circuits, namely for components A and B, pressure vessels A and B, and the hose package. Since the material pressure vessels are each heated directly with a 4 kW tubular heater, the heating time is short and the temperature control is accurate. On request, the unit can be extended by further material fluid heaters and thus modularly adapted to the respective requirements. The large material cross-sections also mean that less pressure is lost. The result: an even higher area output

Pressure ratio	75:1
Max. output	11.5 l/min
Max. inbound air pressure	6.5 bar
Max. operating pressure	450 bar
