----- Plural Component -----

		FLEXIMIX II PHOENIX GX All material-carrying parts are stainless Intuitively operable touch screen display Electronic 2K mixing and dosing units for up to 4 components Easy and quick to learn operation of the unit via the 3.5 or 5 inch color touch screen display. All operating elements such as the pressure setting of the material pumps, the rinsing pump and the atomizing air are positioned on the front panel, just like the USB port and the high-pressure filter, and are thus centrally accessible thanks to the new equipment design.All material-carrying parts of the FLEXIMIX 2 are rust-free, so that water-based paints can also be processed without any problems.A mixing unit with new high-pressure filters was developed especially for the WIWA FLEXIMIX series. The result: no crystallization when using isocyanate and easy adjustment of the dosage to mixing ratios and viscosities.The new multifunctional rack allows the unit to be upgraded with optional accessories such as material fluid heaters, feed tanks, rinsing pumps or additional material pumps. On request, the multifunction rack is also available in a mobile version. Volumetric mixing ratios: 0.5:1 to 17:1 Pressure ratio: 10:1 to 52:1 Maximum operating pressure: up to 416 bar Controllable components: up to 4

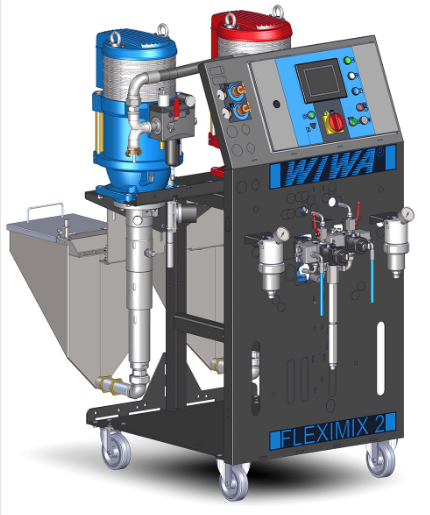

FLEXIMIX II PROFESSIONAL GX

With a permissible spray pressure of up to 460 bar

With a maximum output of over 24 l ideal for larger projects

Quick color changes increase your capacity in an economical way

With a permissible spraying pressure of up to 460 bar or a maximum output of over 24 liters, this FLEXIMIX II version in particular is used for larger projects with different requirements. The powerful and robust unit is ideally suited for dosing and applying low to high viscosity 2K materials, even with short pot lives. For coating materials with extremely high viscosity, the units can be optimally equipped with material fluid heaters or other heating accessories.

Volumetric mixing ratios 0.5:1 to 17:1
Pressure ratio 32:1 to 71:1
Maximum operating pressure up to 460 bar
Controllable components up to 4

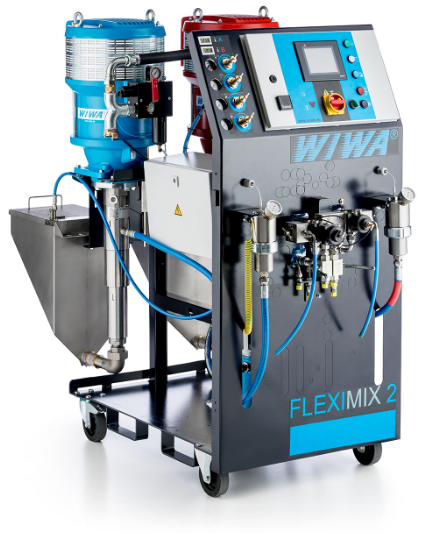

FLEXIMIX 2 HERKULLES GX

Also ideal for manual and automatic coating systems

Enormous area outputs and high coating thicknesses

Simultaneous use of several spray guns or extremely long hose lines possible

The new electronic FLEXIMIX II HERKULES GX 2K series was designed and built for maximum performance requirements. Due to enormous area outputs, high layer thicknesses and the simultaneous use of several spray guns or extremely long hose lines, it is particularly suitable for large-area or thick-layer coatings.Even materials that previously could not be sprayed, or only to a limited extent, can be processed with the FLEXIMIX II HERKULES GX. Due to its high output, the Herkules GX 2K series is also ideal for manual and automatic coating systems.

Volumetric mixing ratios 0.5:1 to 17:1 (270) 0.5:1 to 17:1 (333GX)
Pressure ratio 24:1 to 88:1 (270) 37:1 to 75:1 (333GX)
Maximum operating pressure up to 450 bar (270, 333GX)
Controllable components up to 4 (270 + 333GX)
