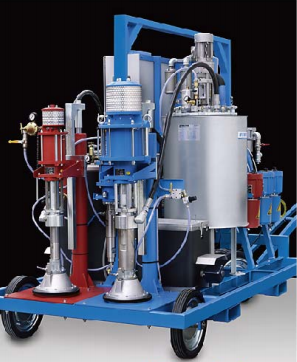

DUOMIX 333 GX PFP
Simple and safe operation of the unit in use
Individual system design possible due to modular system concept
In close cooperation with leading paint manufacturers, WIWA has further developed and optimized its high-performance 2K and 3K application systems. The latest development stage is the smooth processing of an already proven intumescent material. Following successful tests, International Coatings Ltd. has issued equipment certification for the WIWA 2K unit 333 GX PFP. For use in Zone 1 explosion-proof areas, the unit is equipped with a forklift frame with mounting kit for a cart, directly heated pressure vessels as well as pneumatic agitators.
| Pressure ratio |
58： 1 -87：1 |
| Output per cycle |
230-345 ccm |
| Max. output (at 60 cycles/min): |
18.4-20.7 l/min |
| Voltage |
400V |
| Mixing ratio |
a djustable |
| Weight |
1100kg |
The most popular model is:
| Pressure ratio |
61:1 |
| Mixing ratio |
2.33:1 |
| output/cycle |
329ccm |
| cylinder |
115*2+99*1ccm |
|
For IP & PPG |
| Pressure ratio |
66:1
|
| Mixing ratio |
1:1 |
| output/cycle |
306ccm |
| cylinder |
153*2ccm |
|
For Jotun,etc |
