Dust Suction System    ◇Vacuum Abrasive System    ◇NEDERMAN NORCLEAN
Air Powered Ejector Vacuum Systems 50      ◇Air Powered Ejector Vacuum Systems 200      ◇ATEX Approved Vacuum Systems
----- Air Powered Ejector Vacuum Systems 200 -----

NORCLEAN Ab500

Product Infomation
》Model No:Ab500
》Coarse particle suction
》Single container system, designed for the collection of coarse particles, such as chips and granules as well as liquids and sludge. The high vacuum allows transportation of material over a long distance. The container can collect and hold a large volume of material. The unit can be supplied with a bottom drain valve for quick and simple discharge of liquids.
》Origin:Norway

》Dimensions:925 x 850 x 1380mm

》Weight:72 kg
》Container gross volume:220 litres
》Container practical volume:160litres
》Power head:NE52

》ADVANTAGES:

-
High material collection capacity
-
Easy handling
-
High vacuum and suction capacity


NORCLEAN Ab510

Product Infomation
》Model No:Ab510
》Coarse particle suction
》Single container system, designed for the collection of large quantities of coarse particles, such as chips and granules as well as liquids and sludge. The high vacuum allows transportation of material over long distances. Trolley mounted container easily tips to discharge its content. Including slots for fork lift handling, making the system mobile and flexible. The unit can be supplied with a bottom drain valve for quick and simple discharge of liquids.
》Origin:Norway
》Dimensions:925 × 730 × 1640mm

》Weight:102.5KG

》Container gross volume:220L
》Container practical volume:160litres
》Power head:NE52

》ADVANTAGES:

-
High material collection capacity
-
Easy material discharge using tippable container
-
Fork lift handling

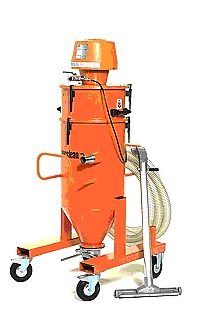

NORCLEAN Ab570

Product Infomation
》Model No:Ab570
》Grit and granulate suction
》Mobile silo system with high suction capacity, designed for the collection of dusty materials and granules, such as steel grit, sand, coarse powders, etc. The silo is equipped with a manually operated discharge valve. Can be supplied with counterweight valve or pneumatic valve for automatic operations. Equipped with the efficient self-cleaning NVF filter. Including slots for fork lift handling, allowing it to be emptied into all types of containers, feeding systems or floor bin. The unit is delivered with 63 mm suction equipment.
》Origin:Norway
》Dimensions:1020 × 880 × 2090mm

》Weight:203KG

》Container gross volume:230litres
》Container practical volume:146litres
》Filter system:NVF
》Power head:NE64

》ADVANTAGES:

-
Silo system with large wheels and forklift slots for excellent handling
-
High vacuum for suction over long horizontal and vertical distances
-
Efficient self-cleaning NVF filter


NORCLEAN Ab581

Product Infomation
》Model No:Ab581
》High capacity grit recovery
》Powerful and flexible vacuum unit installed on trolley, equipped with grit/dust discharge unit on pre-separator silo. The cleaned grit can be emptied into a bucket, feed system or floor bin. The dust is trapped in the NVF filter and collected in the second stage silo. Suitable for use in blasting halls for grit recovery and cleaning of blasted hulls and steel structures. The unit is delivered with 63 mm suction equipment.
》Origin:Norway
》Dimensions:1640 × 890 × 1820mm

》Weight:290KG

》Container gross volume:230litres
》Filter system:NVF
》Power head:NE76

》ADVANTAGES:

-
Very high airflow and high collection capacity
-
Forklift handling with high mobility
-
Efficient filter and grit/dust separation


NORCLEAN Ab600

Product Infomation
》Model No:Ab600
》Granulate and coarse dust suction
》Origin:Norway
》Silo system with high suction capacity for fixed installations. Designed for the collection of dusty materials such as granules, steel grit and recovery of precious metals. The silo is equipped with a manual discharge valve. Can be supplied with counterweight or pneumatic valves for automatic operations. Equipped with the efficient and self-cleaning NVF filter. The unit can be fitted with automatic remote control. The unit is often used as power pack in central suction systems. The unit is delivered with 63 mm suction equipment.
》Dimensions:1150 x 1000 x 2740mm

》Weight:144KG

》Container gross volume:146litres
》Filter system:NVF
》Power head:NE64

》ADVANTAGES:

-
Vacuum unit with silo on flexible frame system
-
High vacuum for suction of heavyweight material over long distances
-
Efficient self-cleaning NVF filter


NORCLEAN Ab710

Product Infomation
》Model No:Ab710
》Heavy duty grit recovery and cleaning system
》This robust and extremely powerful system is designed for the recovery of blasting shot. Equipped with automatic pneumatic pinch valve and automatic self-cleaning NVF filter. Most of the dust is separated from the blasting shot or from the collected granulates. The dust is channelled into its own container, while the blasting shot or granulated material is fed back into the blasting pot, onto conveyors or into other containers.
》Origin:Norway
》Dimensions:1875 x 1000 x 3025mm

》Weight:271KG

》Container gross volume:67+220litres
》Filter system:NVF
》Power head:NE74

》ADVANTAGES:

-
Extremely high vacuum for suction of heavy material over long horizontal and vertical distances
-
Dust separation from collected granulates and grit
-
Automatic filter cleaning and silo discharge


NORCLEAN Ab722

Product Infomation
》Model No:Ab722
》Grit recovery and cleaning system
》An extremely powerful vacuum unit for the collection of blasting grit and other granulated material. The combination of high vacuum and high airflow make material transport over long distances possible. Compact design, built on a frame with the possibility of transportation by forklift. Equipped with grit and dust separator. The clean grit is collected in a silo and can be re-used. The dust is trapped in a high efficient NVF filter and discharged into a dustbin.
》Origin:Norway
》Dimensions:1530 x 1000 x 2870mm

》Weight:300KG

》Container gross volume:67+220litres
》Filter system:NVF
》Power head:NE96

》ADVANTAGES:

-
High vacuum and airflow
-
Dust separation from grit and granulates
-
Efficient self-cleaning NVF filter system

Notes:All models in these series can be used with other ejector type power heads in the system 200 group and can be equipped with a wide range of filtration options (model number changes with each option).
